Application and Standard:
(1)The flex PVC hook-up wire cable can be produced and provided according to standard IEC60227,BS6004,BS6005.
(2)The flex PVC hook-up wire cable belong to the series of laying wires,which are mainly suitable for laying at the fixed places.They are widesly used as connectors of driving,lighting,electric equipments,instrument and telecommunication equipments with rated voltage to 450/750V.Part of the plastic wires are used at the equipment with AC rated voltage upto 300/500V.
Working condition:
(1)The flex PVC hook-up wire cable working temperature is different according to different insulation materials, mainly 70 and 90 degrees temperature, etc.
(2)Enviroment temperature of laying should be not less than 0℃
(3)Rated voltage U0/U is 450/750V,300/300V,300/350V
Category:

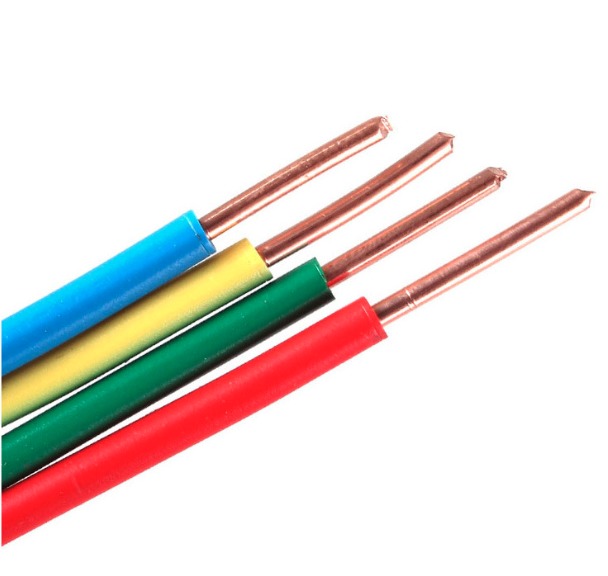

(1)According to the conductor type, including solid conductor PVC insulated electrical wire cable, standed PVC insulated wire cable, Flexible PVC insulated wire cable with different colors.
(2)According to its shape, including flat wire cable, round wire cable, etc. with different colors.
(3)Accoding to its core number, including single core wire cable, multi-core wires cables , etc. with different colors.
Optional Colors:
Application:
Type and Specification:
Type
Name
60227IEC01(BV)
cable with hard single conductor,without sheath for general purpose
60227IEC02(RV)
cable with soft single conductor,without sheath for general purpose
60227IEC05(BV)
cable with solid single conductor,without sheath at 70℃ of conductor temperature
for interior wiring
60227IEC06(RV)
cable with soft single conductor ,without sheath at 70℃ of conductor temperature
for interior wiring
60227IEC07(BV-90)
cable with solid single conductor ,without sheath at 90℃ of conductor temperature
for interior wiring
60227IEC08(RV-90)
cable with soft single conductor ,without sheath at 90℃ of conductor temperature
for interior wiring
60227IEC10(BVV)
light type with PVC sheath
60227IEC52(RVV)
light type soft wire with PVC sheath
common soft wire with PVC sheath
soft cable with oil-proof and shielding ,PVC sheath
60227IEC75(RVVY)
soft cable with oil-proof and non-shielding ,PVC sheath

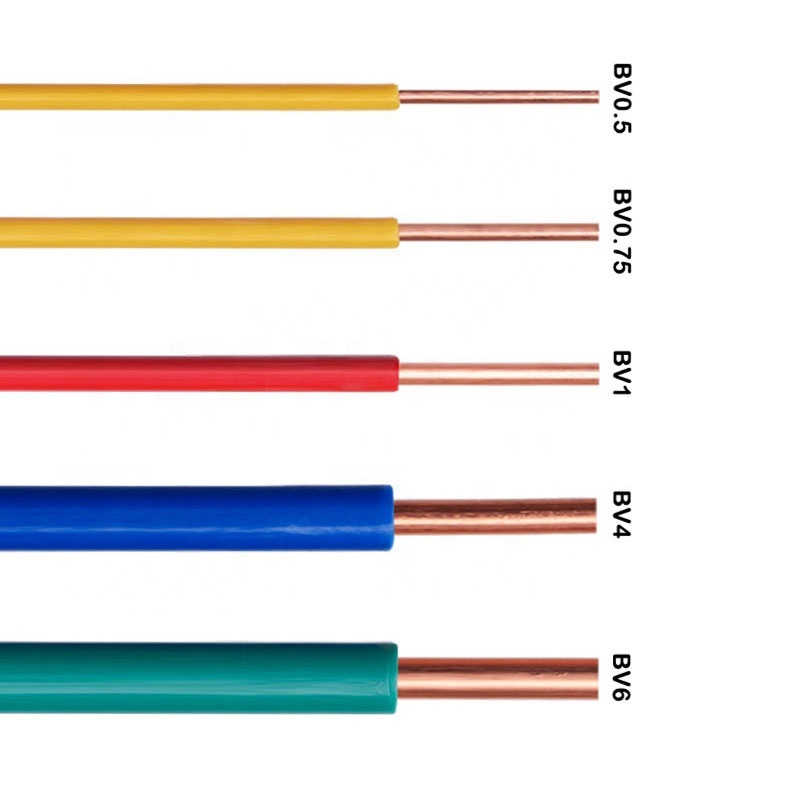

BV
wire with copper core,PVC insulation
BLV
wire with al core PVC sheath
BVR
soft wire with cu core,PVC insulation
BVV
round cable with al core,PVC insulation
BLVV
round type cable with copper core,PVC insulation
BVVB
flat type cable with cu core,PVC insulation
BLVVB
flat type cable with al core,PVC insulation
RVS
soft wire with cu core,PVC insulation,stranding and connection
RVB
soft wire with PVC insulation,flat without sheath
RVV
soft cable with PVC insulation and PVC sheath
RVP
soft wire with cu core,PVC insulation and shielding
RVP-90
soft wire with cu core heating-resisting 90℃,PVC insulation and shielding
RVVP
soft cable with cu core,PVC insulation and shielding,PVC sheath
Technical Parameters:
Nominal Section
Structure
Type of Conductor
Insulation Thickness
Max Outer Diameter
Max. DC Resistance at 20℃
Min. Insulation Resistance at 70℃
mm2
No./mm
mm
mm
Ω/km
Ω/km
1.5
1/1.38
1
0.7
3.2
12.1
0.011
1.5
7/0.52
2
0.7
3.3
12.1
0.01
2.5
1/1.78
1
0.8
3.9
7.41
0.01
2.5
7/0.68
2
0.8
4.0
7.41
0.009
4
1/2.24
1
0.8
4.4
4.61
0.0085
4
7/0.85
2
0.8
4.6
4.61
0.0077
6
1/2.76
1
0.8
5.0
3.08
0.007
6
7/1.05
2
0.8
5.2
3.08
0.0065
10
7/1.35
2
1
6.7
1.83
0.0065
16
7/1.70
2
1
7.8
1.15
0.005
25
7/2.14
2
1.2
9.7
0.727
0.005
35
7/2.52
2
1.2
10.9
0.524
0.0043
50
19/1.78
2
1.4
12.8
0.387
0.0043
70
19/2.14
2
1.4
14.6
0.268
0.0035
95
19/2.52
2
1.6
17.1
0.193
0.0035
