450/750V Pvc Insulated Copper Cable and Wires 12 Gauge Electrical Wire

500
MOQ
450/750V Pvc Insulated Copper Cable and Wires 12 Gauge Electrical Wire
cechy Galeria opis produktu Poprosić o wycenę
cechy
specyfikacje
Materiał przewodnika: Miedź
Materiał izolacyjny: PCV
Aplikacja: Napowietrzne, Kabel przyłączeniowy lub przewód o napięciu znamionowym 450/750V
Typ przewodnika: Miedź
Typ: Izolowane, BV, BLV, BVR, BVV, BLVV, BVVB, BLVVB, RVS, RVB,RVV, RVP/RVP-90, RVVP
Nazwa produktu: Przewód elektryczny o średnicy 12 mm
inne imię: Kabel I Przewody Elektryczne
Standard wykonawczy: GB/T5023-2008, JB/T 8734-2012
Kolor: Jako twój wymóg
Tryb wysyłki: Przesyłka morska/przesyłka lotnicza
Próbki bezpłatne: Tak
Uszczelka: Jako twój wymóg
Podkreślić:

12 gauge PVC insulated copper wire

,

450/750V electrical wire

,

TPE insulated 12 gauge cable

Podstawowe informacje
Miejsce pochodzenia: Chiny
Nazwa handlowa: Sanco Cable
Orzecznictwo: ROHS
Numer modelu: Seria BV RV
Zapłata
opis produktu

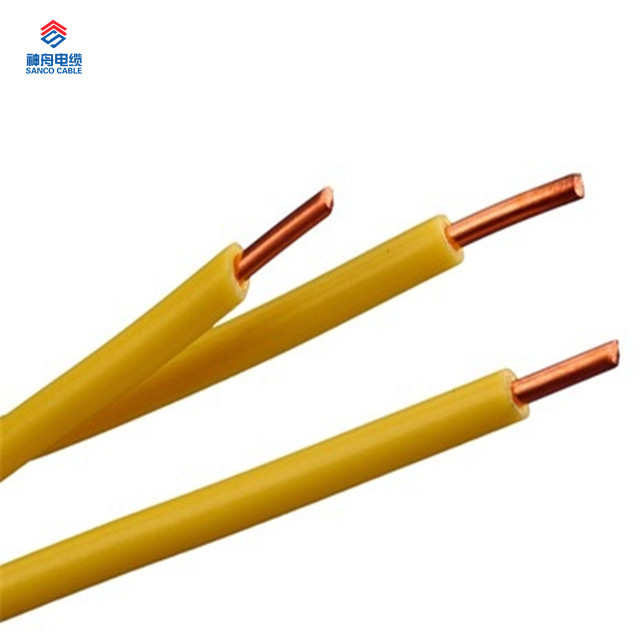

 450/750V Pvc Insulated Copper Cable And Wires 12 Gauge Electrical Wire



Application

The cable is used as connection cable or wire of rated voltage 450/750V or lower for power plants ,fixed wiring and flexible connection for electrical appliances.

 Type and name

Type and name
Type name Executive standard
60227IEC01(BV) cable with hard single conductor,without sheath for general purpose GB/T 5023-2008
GB/T5023.3-2008
60227IEC02(RV) cable with soft single conductor,without sheath for general purpose
60227IEC05(BV) cable with solid single conductor,without sheath at 70℃ of conductor temperature for interior wiring
60227IEC06(RV) cable with soft single conductor ,without sheath at 70℃ of conductor temperature for interior wiring
60227IEC07(BV-90) cable with solid single conductor ,without sheath at 90℃ of conductor temperature for interior wiring
60227IEC08(RV-90) cable with soft single conductor ,without sheath at 90℃ of conductor temperature for interior wiring
60227IEC10(BVV) light type with PVC sheath GB/T 5023.4-2008
60227IEC52(RVV) light type soft wire with PVC sheath GB/T5023.5-2008
  common soft wire with PVC sheath
  soft cable with oil-proof and shielding ,PVC sheath  GB/T5023.7-2008
60227IEC75(RVVY) soft cable with oil-proof and non-shielding ,PVC sheath
BV wire with copper core,PVC insulation
BLV wire with al core PVC sheath
BVR soft wire with cu core,PVC insulation
BVV round cable with al core,PVC insulation
BLVV round type cable with copper core,PVC insulation JB/T8734.2-2016
BVVB flat type cable with cu core,PVC insulation
BLVVB flat type cable with al core,PVC insulation
RVS soft wire with cu core,PVC insulation,stranding and connection JB/T8734.3-2016
RVB soft wire with PVC insulation,flat without sheath
RVV soft cable with PVC insulation and PVC sheath
RVP soft wire with cu core,PVC insulation and shielding JB/T8734.5-2016
RVP-90 soft wire with cu core heating-resisting 90℃,PVC insulation and shielding
RVVP soft cable with cu core,PVC insulation and shielding,PVC sheath

Note:1.we also produce the cables with ROHS standard,removal of lead,cadmium,mercury hexavalent chromium,

polybrominated biphenylpbdes substances may cause harm to human body health,to be no heavy metals,environmental friendly,non-toxic.
2.Prefix AZ-,ZB-,ZC- is added to the original type for indication of flame retardant cable,for example ZB-RVVP(Soft cable with cu core,

PVC insulation,PVC sheath,shielding and B-Class flame retardance.
3.Prefix NH- is added to the original type for for indication of fire resistant cable,for example NH-BV

(Wire with Cu core,PVC insulation and fire resistance),ABN-BVR(soft cable with cu core,PVC insulaiton,B-Class flame retardant and fire resistance)



Using features

1.Long-term Max. working temperature allowed by cable conductor
60227IEC(BV-90).................................................................90℃
60227IEC(RV-90).................................................................90℃
other type.............................................................................90℃

2.Enviroment temperature of laying should be not less than 0℃
Bending radius of cable D≤25mm ........................................≥4D
D>25mm ..............................................................................≥6D
(D is outer diameter of cable)
3.Rated voltage U0/U is 450/750V,300/300V,300/350V

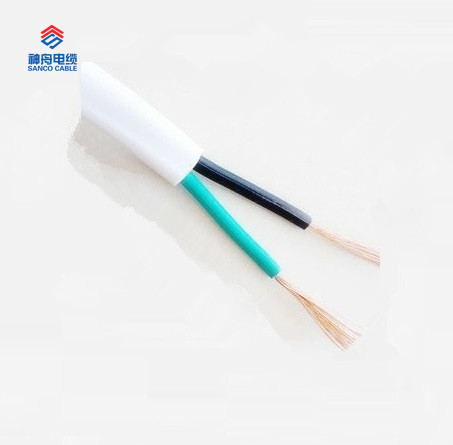

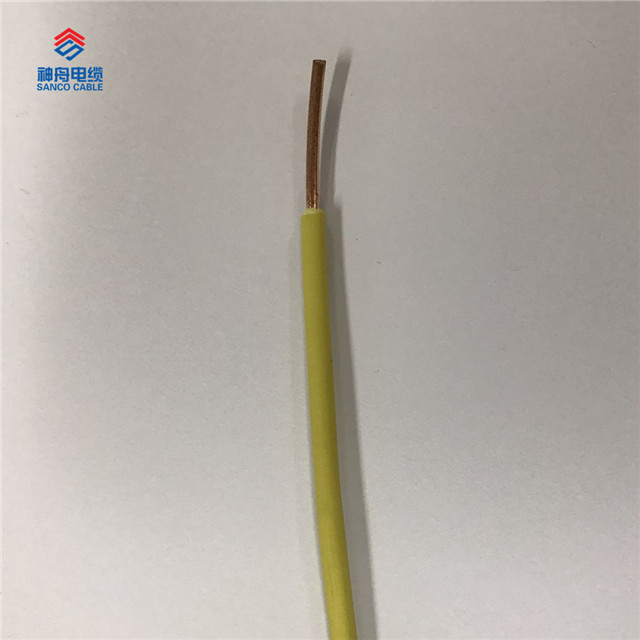

Product structure figure:

450/750V Pvc Insulated Copper Cable and Wires 12 Gauge Electrical Wire 0450/750V Pvc Insulated Copper Cable and Wires 12 Gauge Electrical Wire 2

450/750V Pvc Insulated Copper Cable and Wires 12 Gauge Electrical Wire 4450/750V Pvc Insulated Copper Cable and Wires 12 Gauge Electrical Wire 6

450/750V Pvc Insulated Copper Cable and Wires 12 Gauge Electrical Wire 8

450/750V Pvc Insulated Copper Cable and Wires 12 Gauge Electrical Wire 10

Company Informations

450/750V Pvc Insulated Copper Cable and Wires 12 Gauge Electrical Wire 12

Factory

Shenzhou Special cable is a reputed manufacturer of military and consumer cables.Our main products:

1.High temperature wires cables,PTFE cable,FEP cable,Fluoroplastic wire

2.Rubber cable,welding cable,Mine cable,submersible cable

3.Hook up wire,electronic cable

4.Salor cable,control cable,power cable and so on

Team

To meet customer's demand,we have:

1.Advanced R&D staff

2.Professional transport team

3.High-quality engineering installtion team

4.Professional talented technicians group

5.International sales department:6 person

6.Domestic sales:15 person

7.QC team



450/750V Pvc Insulated Copper Cable and Wires 12 Gauge Electrical Wire 14

Workshop

1.Production line:9 line

2.Month production capacity:90000m

3.Production workers:about 250 persons

3.Annual production capacity:RMB20million

4.Advanced electrical,chemical and mechanical properties test equipment



Warehouse

More than 600 square meters finished product warehouse.Xiangtan shenzhou special cable CO., ltd also engaged in

1.Low smoke zero halogen compounds

2.Xlpe compound

3.Soft PVC compound for cable insulation or sheath





450/750V Pvc Insulated Copper Cable and Wires 12 Gauge Electrical Wire 16

Product test

We focus on quality, Over the past years, our company serously carries out its responsibility for product quality,guarantees repair,replacement and return for product that has quality problem during manufacture,and compensates for direct economic loss caused by quality problem.



Our Customer

450/750V Pvc Insulated Copper Cable and Wires 12 Gauge Electrical Wire 18

In the past years,We participated in the Middle East Electricity Exhibition in Dubai,China-ASEAN Exposition,Power-Gen India....More than 20 years experience in cable production,hope that our profession and high quality service will bring you success and satisfied purchasing experience.

450/750V Pvc Insulated Copper Cable and Wires 12 Gauge Electrical Wire 20

Why Choose us

450/750V Pvc Insulated Copper Cable and Wires 12 Gauge Electrical Wire 22

Awards  and Merits

We are a stable wire and cable supplier of China's aerospace and military,Customer satisfition is our primay aim.More details pls refer to below form:

No.

Item

Faulty Products

Our products

1.

Length

Insufficient length

Sufficient

2.

Wire drawing

thick at both ends and thin in the middle

Same from beginning to end

3.

Conductor

copper clad aluminum ,Copper clad brass

99.999% pure copper

4.

Insulation

Recycled compound

Virgin compound

If you want to know how to identify,welcome click here



Our Service

1.Free technical consultation service before, during, and after sales,help customers to choose right product

2.Free sample and design services

3.Fee service for any special monitor and conduct detection during manufacture process

4.Provide 100% free insurance for internal transportation;

5.OEM & ODM is welcome

6.Small order can be supplied

Packing & Shipping

450/750V Pvc Insulated Copper Cable and Wires 12 Gauge Electrical Wire 24

100m/coil with

non-woven bag

200m/Roll with film 500m with wooden drum

800m with

wooden iron drum

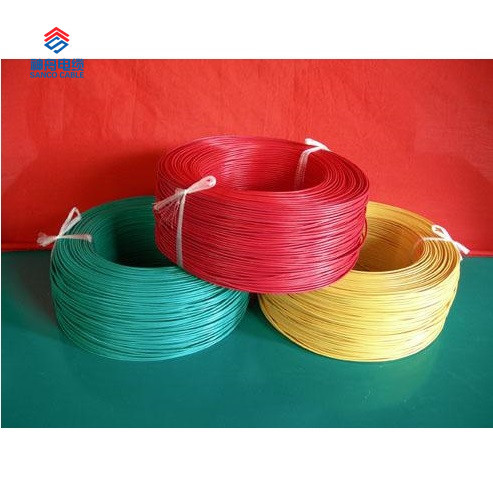

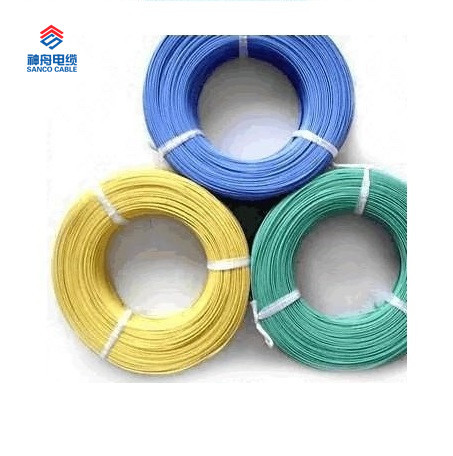

Packaging of wire



1• Plyethylene film winding in roll with non-woven bag or carton box for small diameter wires(100m/roll)

2• Packing in drum with plastic tray(300m/drum)

3• Wooden drums,fumigated wooden drums,Wooden iron drums for large diameter cable(500/drum)



• We can supply fumigation package and certificate.
• Shipping, train, express or upon clients' demands.
FAQ

450/750V Pvc Insulated Copper Cable and Wires 12 Gauge Electrical Wire 26

1).Q:Are you a manufacturer or trading company?

 A:We are a professional manufacturer,research,development and sales of military and consumer cable wire and cable compound.The company is located in Hunan Province,China



2).Q:What is your company's strengths?

 A:We are a stable wire and cable supplier of China's aerospace and military,21 years experience,cable compounds produced by ourselves,This is how we keep superior quality and competitive offers for global valued customers.



3).Q:How do you guarantee your product quality?

A:Quality is our priority,we treat quality control as the first most important thing from the very beginning to the very end.In design,materials procurement,manufacturing semi-finished products testing,finished product inspection such as strick control to ensure product quality.



4).Q:What's the warranty of your products?

A:We provide 1 year complete warranty service,If the products have quality problems,We plant to replace or return unconditionally.

Contact us

450/750V Pvc Insulated Copper Cable and Wires 12 Gauge Electrical Wire 28

                          Send your inquiry details in the below for free sample,click "Send" now!
