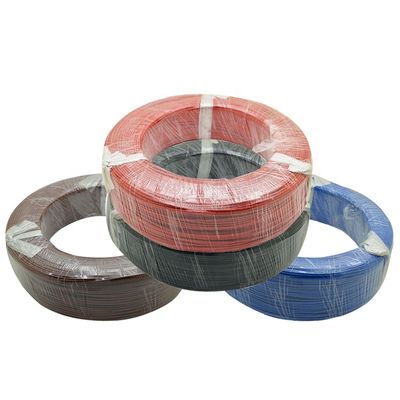

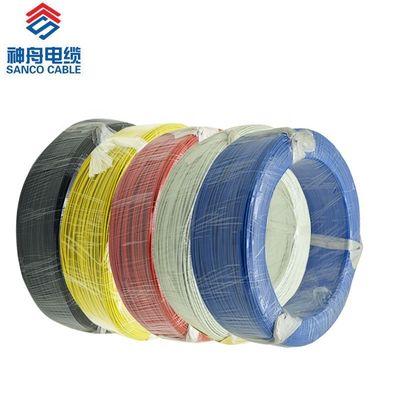

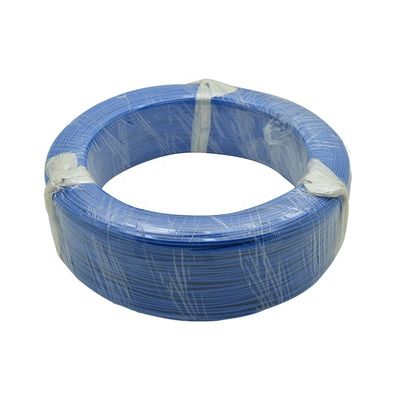

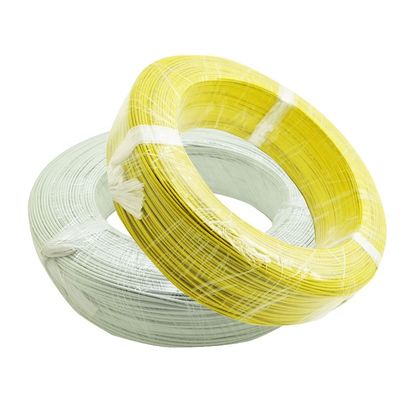

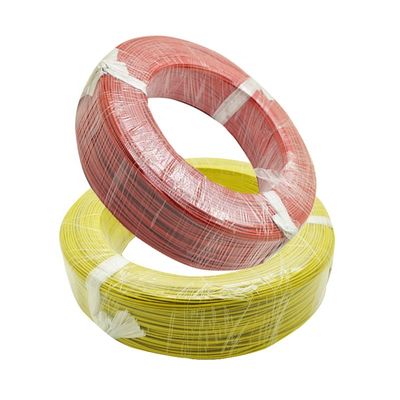

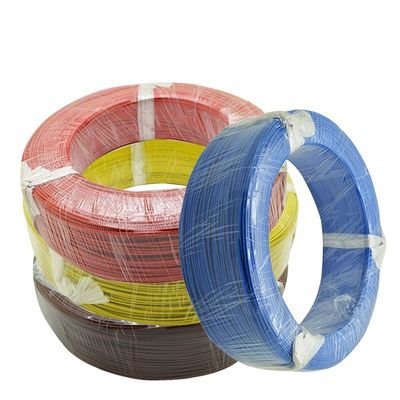

7 Strands Tinned Stranded Copper FEP Heating Wire
FEP insulated wire features insulation made from fluorinated ethylene propylene (FEP) polymer, known for its high thermal stability, chemical resistance, and excellent electrical properties. Ideal for aerospace, automotive, and electrical applications in high-temperature and high-frequency environments.
Key Features
- Wear and scratch resistant
- Easy to install and strip
- High and low temperature resistant (-65°C to +200°C)
- Anti-aging and corrosion resistant
- Excellent interference resistance
Technical Specifications
| Conductor Materials |
Tinned Plated Copper, Silver Plated Copper, Bare Copper |
| Conductor Type |
Stranded or Solid |
| Number Core |
Single Core or Multiple Cores |
| Insulation |
FEP, PTFE, PFA Insulated |
| Rated Voltage |
600V or Below |
| Rated Temperature |
-65°C to +200°C |
| Color |
White, Blue, Red, Black, Yellow, Green, Transparent, Yellow/Green |
Product Types
| Type |
Name |
| AF-200 |
Silver Plated Copper Core FEP Insulation Install Wire |
| AF-200-1 |
Tin Plated Copper Core FEP Insulation Install Wire |
| AFP-200 |
Tin/Silver Plated Copper Core FEP Insulation Shield Install Wire |
| AFS-200 |
Tin/Silver Plated Copper Core FEP Insulation Stranded Install Wire |
| AFSP-200 |
Tin/Silver Plated Copper Core FEP Insulation Stranded Shield Install Wire |
Detailed Specifications
| Wire gauge |
Cross-section area |
Conductor structure |
Max. OD of cable |
| 36AWG |
0.013mm² |
7/0.05 |
0.65-1.3mm |
| 32AWG |
0.035mm² |
7/0.08 |
0.75-1.4mm |
| 30AWG |
0.05mm² |
7/0.10 |
0.85-1.6mm |
| 28AWG |
0.07mm² |
7/0.12 |
0.9-1.65mm |
| - |
0.1mm² |
7/0.14 |
1-1.75mm |
| 26AWG |
0.14mm² |
7/0.16 |
1.1-1.95mm |
| 24AWG |
0.2mm² |
19/0.12 |
1.2-1.98mm |
| - |
0.3mm² |
7/0.23 |
1.25-2.05mm |
| 22AWG |
0.35/0.40mm² |
19/0.16 |
1.4-2.2mm |
| 20AWG |
0.5mm² |
19/0.18 |
1.6-2.4mm |
| - |
0.6mm² |
19/0.20 |
1.75-2.5mm |
| - |
0.75/0.80mm² |
19/0.23 |
1.8-2.6mm |
| 18AWG |
1mm² |
19/0.26 |
2-2.9mm |
| 16AWG |
1.2mm² |
19/0.28 |
2.2-3.1mm |
| - |
1.5mm² |
19/0.32 |
2.4-3.3mm |
| 14AWG |
2mm² |
19/0.37 |
2.7-3.6mm |
| - |
2.5mm² |
37/0.30 |
3.4-4.4mm |
| 12AWG |
3mm² |
37/0.32 |
3.6-4.6mm |
| - |
4mm² |
37/0.37 |
4-5.1mm |
| 10AWG |
5mm² |
37/0.41 |
4.5-5.6mm |
| - |
6mm² |
37/0.45 |
4.8-5.9mm |
| 8AWG |
8mm² |
133/0.28 |
6-7.3mm |
Note: FEP high temperature lead wire specification and core number can be customized.
